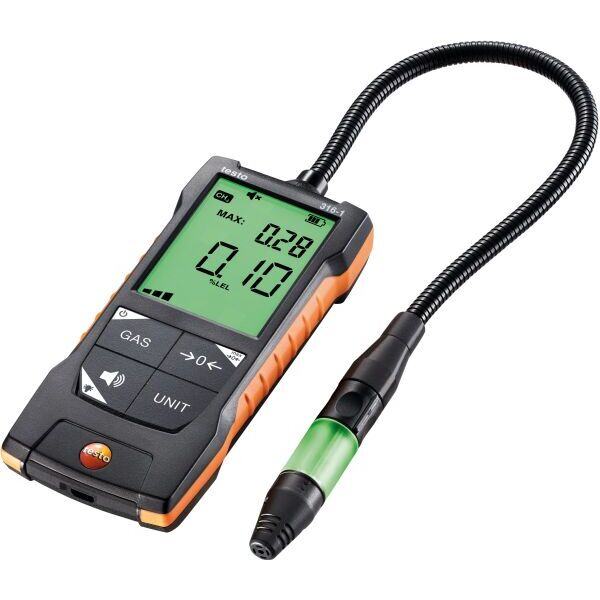

Testo Gas Leak Detector 316-1

For detection of methane, propane, butane, & hydrogen

Acoustic and visual alarm via multi-colour LED on the sensor head, and via 3-colour display backlight
Display of ppm / vol% / %LEL directly on the instrument
Sensor self-test and automatic zeroing
Flexible probe for locations that are difficult to access

Audible and visual alarm with multi-colour LED on sensor head;
Display of ppm / vol% / %LEL directly on the instrument
Sensor self-test and automatic zeroing
Flexible probe for locations that are difficult to access

If you like to keep things simple, we recommend the testo 316-1 gas leak detector: Identifying and locating gas leaks or even reading off concentration values in ppm or %LEL (lower explosive limits) are all exceptionally easy. Simple to use thanks to the intuitive traffic-light scale on the head and the display illumination.

Measurement parameters : ppm, vol %, %LEL

Detectable gases : Methane, Propane, Butane, Hydrogen
Measuring range & lower response threshold :
Methane (CH4): 50 ppm to 4.0 vol.%
Propane (C3H8): 50 ppm to 1.9 vol.%
Butane (C4H10): 50 ppm to 1.5 vol.%
Hydrogen (H2): 50 ppm to 4.0 vol.%

Resolution : 1ppm / 0.01%vol / 1% LEL
Response time < 2 sec

testo 316-1, batteries, transport bag, quick start guide, 1x carton Box Packaging

Technical Specifications

Manufacturer Part Number

0560 3162 Â

Documents

• Testo Gas Leak Detector 316-1 - (924.96 KB)
