testo 300 - Flue Gas Analyser (Advanced Kit)

testo 300 - Flue Gas Analyser (Advanced Kit) (C004202)

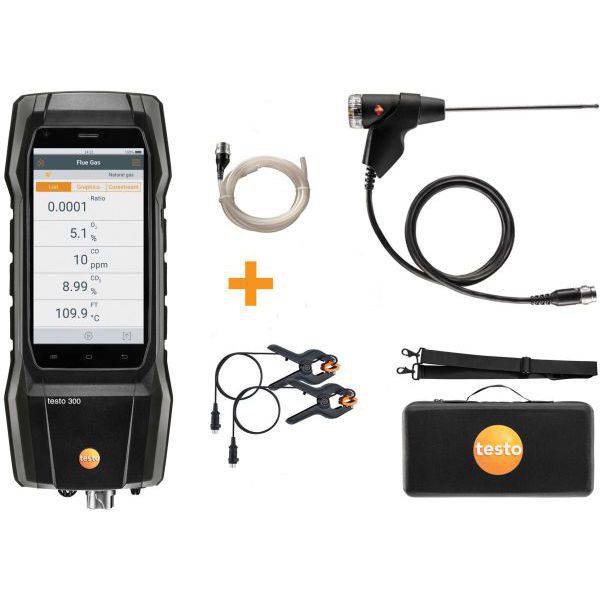

With this kit, you will be equipped for the most important measurements involving heating systems: the EN 50379, Parts 1-3 compliant testo 300 flue gas analyser is supplied with O2 and 4,000ppm CO sensor, basic flue gas probe, soft-case styleinstrument bag with carrying handle ,2 x pipe clamps for differential temperture, pressure connection set. If required a testo fast bluetooth printer 0554 0621 can be used to give local printout of measured values (printer NOT supplied in this kit)

Fast and easy to operate: intuitive measurement menus and fast-response via large 5-inch HD displaySmart-Touch display

Including O2 and CO sensor up to 4,000 ppm

Digital reporting - measured values can be stored in pre-formed report protocol including full customer address and site details

3rd sensor slot to allow optional Nitric Oxide (NO) sensor to be fitted to allow device to give calculated NOx measurement (sensor 0393 0151 required)

testo 300 flue gas analyzer with O2 and CO sensor up to 4,000 ppm (0633 3002 70)

USB mains unit, including cable (0554 1105)

Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500°C; 1.5 m hose; including cone for fixing (0600 9740)

2 x clamp probes (NTC) for temperature measurements on pipes (Ø 6-35 mm) with fixed cable (cable length 1.4 m) (0615 5505)

Pressure connection kit with 2 silicone hoses (Ø 6 mm and Ø 4 mm, each 1 m long) and measuring instrument adapter for testo 300 (0554 1203)

Soft-case style Instrument bag (0516 3001)

Technical Specifications

Manufacturer Part Number

0564 3002 91

Documents

• testo 300 - Flue Gas Analyser (Advanced Kit) - (3.38 MB)
