Kane 458s Flue Gas Analyser PRO Kit

Part Number : CORGID.3424350

£1,003.13 Ex VAT

£1,203.76 Inc VAT

4 available for delivery.

£1,003.13 Ex VAT

£1,203.76 Inc VAT

4 available for delivery.

Select Your Kit (See below for kit info)

Please enter your delivery postcode

Need help or advice?
Simply call us on the number below...

KANE458s Flue Gas Analyser with direct CO, CO2 & CO sensor protection

  • Tests domestic gas, oil, biomass & some commercial appliances
  • Latest upgradeable sensor technology
  • Easy to use rotary dial
  • Purge pump protection prevents accidental damage to CO sensor
  • Wireless as standard
  • Hydrogen (H2 ) ready – up to 20% blend

Features

  • Structured commissioning test
  • Rotary dial & 6 line display
  • Data hold, log & print with user details to optional printer
    • Combustion - Pressure - Let-by & Tightness
    • Temperature - CO build up - Commission test
  • 10 year 'no quibble' warranty when recertified by KANE

Application

  • Install & service domestic oil & gas appliances
    • additional sensors to suit applications
  • Safety checks – CO in rooms or around appliances
  • Combustion performance checks
  • Combustion efficiency checks
  • Flue Draught

Measures

  • CO2 direct with an Infra-Red sensor 0-20%
  • CO 0-2,000ppm
  • Differential temperature
  • High accuracy differential pressure meter +/- 80mbar
  • O2 0-21% (option)
  • NO 0-600ppm (option)
  • High Range CO 0-10,000ppm (option)

Calculates

  • O2
  • CO/CO2 ratio
  • Excess air
  • Combustion efficiency
  • NOx (option)

Fuel Types

  • Natural Gas
  • LPG
  • Wood Pellets
  • Butane
  • Light oil
  • Propane

Box Contents

  • Analyser
  • Probe
  • Pressure connectors
  • USB charger
  • Quick reference guide & analyser calibration certificate

Upgrades available , contact us on 01285 715408 quoting part number below -

KANE458s High range CO sensor (0-10000ppm) C004266
KANE458s NO sensor (0-600ppm) C004267
KANE458s O2 sensor (0-21%) C004268

Kane 458s

FGA with KANE LINK wireless module, direct CO, CO2 & CO sensor over-range protection, 1 psi pressure sensor supplied with pressure hose, CP2 combustion probe & USB1 charger

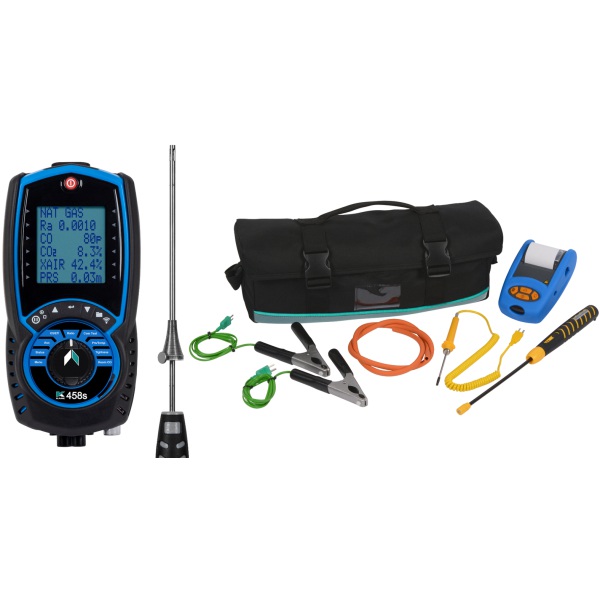

Kane 458s KIT

As KANE458s plus KANE-IRP3 infra-red printer & 17820 carry bag

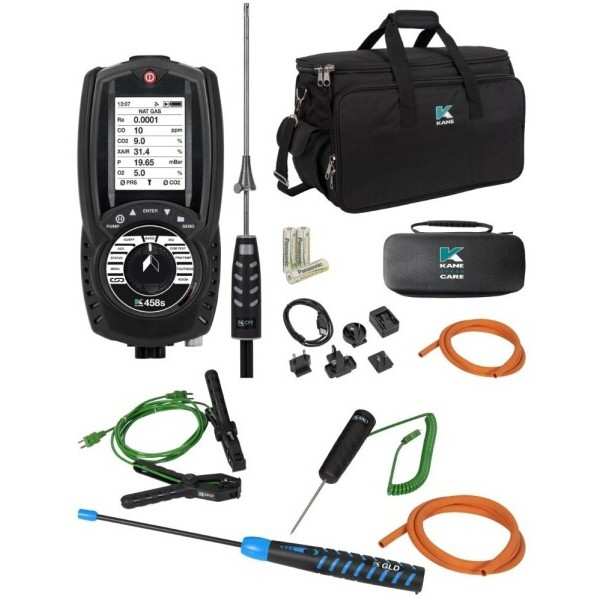

Kane 458s PRO KIT

As KANE458s KIT plus , GLD leak detector, KAL1 general purpose temp probe, 2 x KPCP2 clamp-on pipe probes & 14102/2 large carry bag replaces standard carry bag

Kane 458s CPA1

As KANE458s PRO KIT plus ASP3 cooker, fire & grill appliance testing probes.

Technical Specifications

Manufacturer Part Number KANE458SPROKIT
