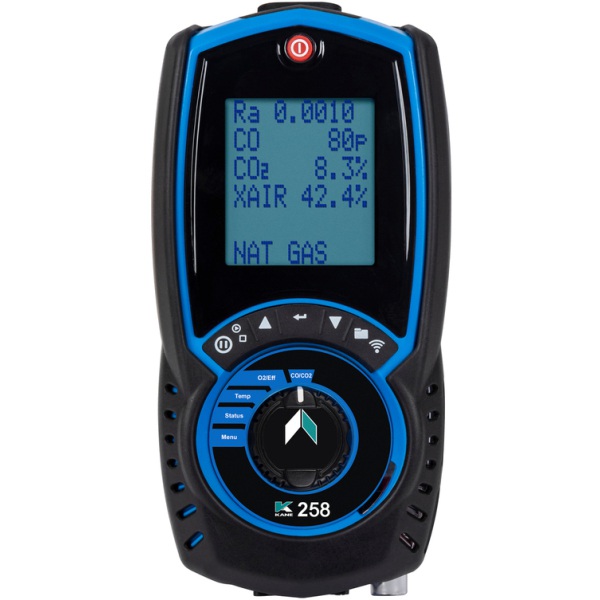

KANE 258 Flue Gas Analyser

KANE 258 Flue Gas Analyser Kit

KANE258 Flue Gas Analyser with direct CO, O₂ & CO sensor protection

• Entry level FGA for domestic gas applications
• Easy to use rotary dial
• Purge pump protection prevents accidental damage to CO sensor
• Hydrogen (H 2 ) ready – up to 20% blend

Features

• Rotary dial & 6 line display
• Wireless option
• Connect to KANE LIVE & GAS CHECKER Apps
• Data hold, log & print with user details to optional printer
• Produce test reports: Combustion & temperature
• USB Charger
• 10 year 'no quibble' warranty when recertified by KANE

Application

• Install & service domestic oil & gas appliances
• Combustion performance checks
• Combustion efficiency checks

Measures

• CO 0-2,000ppm
• O₂0-21%
• Differential temperature

Calculates

• CO₂0-20%
• CO/CO₂ratio
• Excess air
• Combustion efficiency

Fuel Types

• Natural Gas
• Butane
• LPG
• Light oil
• Wood pellets
• Propane

  KANE 258 KIT Box Contents

• Analyser
• CO Sensor
• KANEIRP-3 Infra Red Printer
• USB Charger
• Carry Case
• Probe
• Quick reference guide & analyser calibration certificate

KANE 258 PRO KIT Box Contents

• Analyser
• CO Sensor
• KANEIRP-3 Infra Red Printer
• USB Charger
• Large Soft Carry Case
• Probe
• Quick reference guide & analyser calibration certificate
• Gas Leak Detector
• KAL1 & KPCP (x2) Temp Probes
• HARHOSE Pressure Tubing

Technical Specifications
