KANE 458s Flue Gas Analyser Kit

Name: KANE 458s Flue Gas Analyser Kit
Brand: Kane
SKU: 3424349
Price: 956.42 GBP
Availability: InStock

Part Number : 3424349

£797.02 Ex VAT

£956.42 Inc VAT

Out of stock. Available to order. Contact us for lead time

£797.02 Ex VAT

£956.42 Inc VAT

Out of stock. Available to order. Contact us for lead time

Please enter your delivery postcode

Need help or advice?

Simply call us on the number below...

Description
Technical Specification
Videos

KANE458s Flue Gas Analyser with direct CO, CO₂ & CO sensor protection

Tests domestic gas, oil, biomass & some commercial appliances
Latest upgradeable sensor technology
Easy to use rotary dial
Purge pump protection prevents accidental damage to CO sensor
Wireless as standard
Hydrogen (H₂ ) ready – up to 20% blend

Features

Structured commissioning test
Rotary dial & 6 line display
Data hold, log & print with user details to optional printer
- Combustion - Pressure - Let-by & Tightness
- Temperature - CO build up - Commission test
10 year 'no quibble' warranty when recertified by KANE

Application

Install & service domestic oil & gas appliances
- additional sensors to suit applications
Safety checks – CO in rooms or around appliances
Combustion performance checks
Combustion efficiency checks
Flue Draught

Measures

CO₂ direct with an Infra-Red sensor 0-20%
CO 0-2,000ppm
Differential temperature
High accuracy differential pressure meter +/- 80mbar
O₂ 0-21% (option)
NO 0-600ppm (option)
High Range CO 0-10,000ppm (option)

Calculates

O₂
CO/CO₂ ratio
Excess air
Combustion efficiency
NOx (option)

Fuel Types

Natural Gas
LPG
Wood Pellets
Butane
Light oil
Propane

Box Contents

Analyser
Probe
Pressure connectors
USB charger
Quick reference guide & analyser calibration certificate

Upgrades available , contact us on 01285 715408 quoting part number below -

KANE458s High range CO sensor (0-10000ppm) C004266

KANE458s NO sensor (0-600ppm) C004267

KANE458s O2 sensor (0-21%) C004268

Kane 458s

FGA with KANE LINK wireless module, direct CO, CO2 & CO sensor over-range protection, 1 psi pressure sensor supplied with pressure hose, CP2 combustion probe & USB1 charger

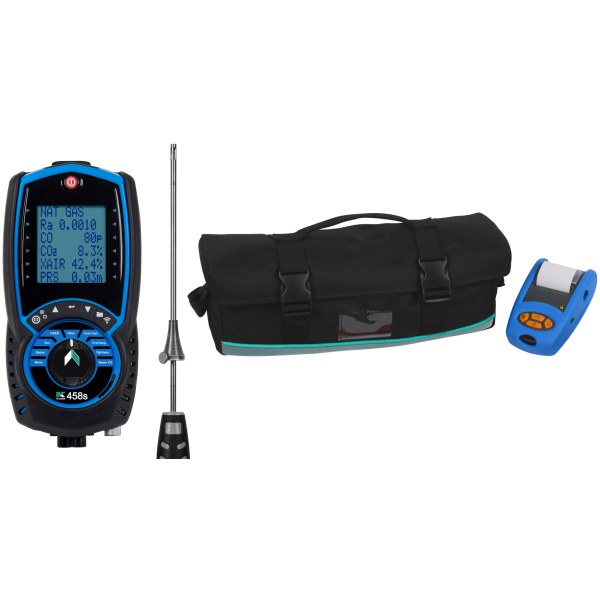

Kane 458s KIT

As KANE458s plus KANE-IRP3 infra-red printer & 17820 carry bag

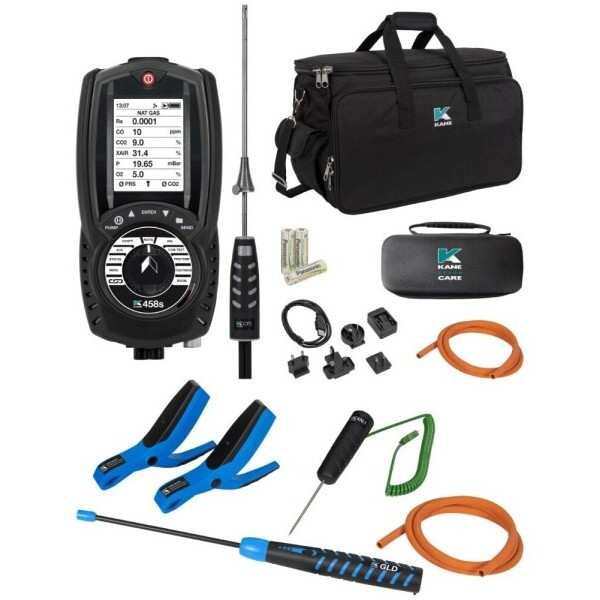

Kane 458s PRO KIT

As KANE458s KIT plus , GLD leak detector, KAL1 general purpose temp probe, 2 x KPCP2 clamp-on pipe probes & 14102/2 large carry bag replaces standard carry bag

Kane 458s CPA1

As KANE458s PRO KIT plus ASP3 cooker, fire & grill appliance testing probes.

Technical Specifications

Manufacturer Part Number

KANE458SKIT
