Kamco CF90 Quantum Power Flusher 240v

Part Number : COR.C000210

£1,295.00 Ex VAT

£1,554.00 Inc VAT

14 available for delivery.

£1,295.00 Ex VAT

£1,554.00 Inc VAT

14 available for delivery.
Please enter your delivery postcode

Need help or advice?
Simply call us on the number below...
Related items
Kamco CombiMag Power Flushing Filter

Kamco CombiMag Power Flushing Filter

Part number COR.C000226

Manf # MI039

£416.50 ex VAT

£499.80 inc VAT

The all important flow rate of the original Quantum has been increased by a further 10%, without increasing maximum pressure beyond 1.8 bar, to ensure that no damage will be done to a heating system. The flow rate is more than double that of most power flushing pumps on the market, enabling it to remove more debris from a system in less time.

The Quantum2 has a direct drive system to give run-dry capability, whilst the tank capacity has been increased to 57 litres, with virtually no increase in footprint, for ease of location on site and in engineers’ vans. The unit is highly manoeuvrable, with an extended handle and 200mm wheels enabling it to be wheeled up kerbs and stairs.

Performance is similar to commercial power flushing pumps and, although it can be used on systems with three storeys and 35-40 radiators, it may also be used on very small micro-bore heating systems with great effect.

High temperature capability to 75°C is an important feature of the pump, as the efficiency of most flushing chemicals is enhanced with increased temperature. The Quantum2 can be used with dispersant chemicals that need higher temperatures to perform, as well as more powerful ‘one shot’ flushing chemicals, added through the large diameter filler cap.

Sludge and corrosion deposits are dislodged by high velocity water, the direction of which can be reversed instantaneously to create turbulence in radiators. Fresh water is then driven through the system to purge the debris to waste. Progress can be clearly seen at all times through the translucent tank and clear hoses.

The Clearflow CF90 Quantum 2® is a purpose built tool for power flushing heating and cooling systems to cure the circulation and noise problems which often occur with time, or as a result of design or installation faults. These problems are generally caused by accumulations of sludge, corrosion deposits, and scale which need to be removed.

Technical data of the Kamco Clearflow CF90 – Quantum 2 Power Flusher:
  • Tank capacity: 57 litres (3 storeys)
  • Motor: 0.75 HP
  • Motor protection rating: IP54
  • Voltage: 240
  • Max flow rate: 150 lt/min
  • Max head: 24mt
  • Max temperature: 75°c
  • Flow reverser type: Instantaneous
  • Control Valves: 2 x 3-port combination valves for isolation and dumping
  • Flow and return hoses: 2 x 5 metre hoses, 19mm I.D. re-inforced PVC
  • Hose end fittings: ¾” x 19mm tool-free brass hose couplings
  • Dump hose: 1 x 8 metre, 19mm I.D. re-inforced PVC
  • Water inlet hose: 1 x 8 metre ultra tough water hose pipe
  • Overflow hose: 1 x 3 metre, 19mm I.D. re-inforced PVC
  • Other hoses supplied: 2 x adaptor hoses for connection to 1.5” circulator pump fittings
  • Carring/transport: Integral handle, 200mm wheels
  • Weight: 22.5kg
  • Dimensions (mm): 390w x 590d x 890h

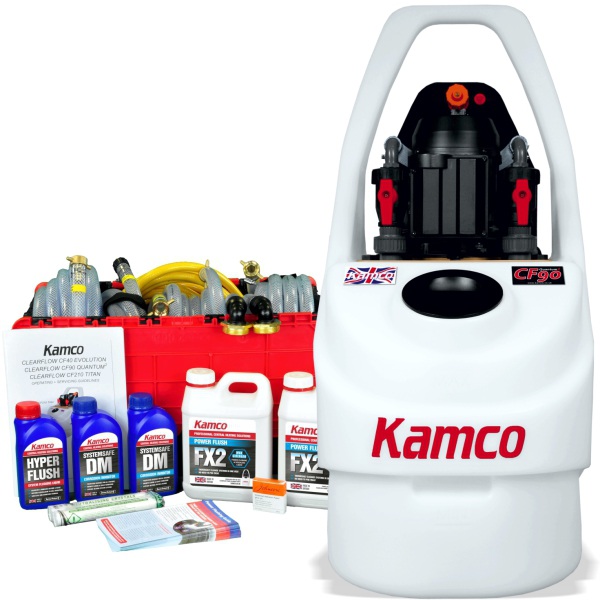

Your purchase of the Kamco Clearflow CF90 – Quantum 2 Power Flusher includes:
  • CF90 Quantum 2 Power Flusher
  • Chemical Starter Pack - enough for 2+ jobs
  • 2 x 2.5 litres Power Flush FX2
  • 2 shots of Neutralising Crystals
  • 2 x 1 litre Systemsafe DM inhibitor
  • 1 x 1 litre Hyper-Flush
  • pH test strips
  • Full set of hoses:
  • 1 x 8 metre Dump Hose
  • 2 x 5 metre Flow & Return Hoses
  • 2 x 2 metre Circ pump fittings
  • 1 x 8 metre Water Inlet Hose
  • 1 x 3 metre Overflow Hose
  • Instruction Manual
  • FREE TRAINING

Please note that dependant on the area you live in, an additional delivery charge could be incurred for this product

Technical Specifications

Category Area Powerflushers & Accessories
Manufacturer Part Number CF90-240V
