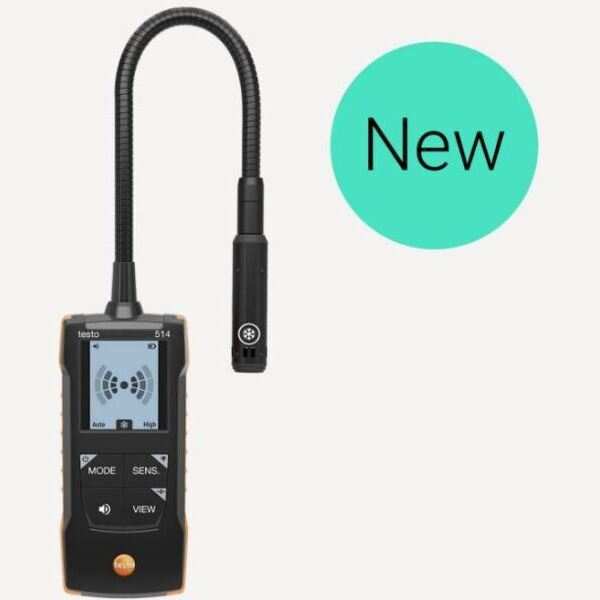

testo 514 Refrigerant leak detector with flexible probe

The testo 514 is a reliable, easytouse detector for pinpointing even the smallest refrigerant leaks in AC/R systems. With 3 g/a sensitivity and testing according to DIN EN 14624, it meets EU FGas requirements while delivering precise results. Ready to use immediately without selecting a refrigerant type, and featuring a replaceable sensor, it ensures efficient work with minimal downtime.

Your benefits

High sensitivity - Sensitivity of 3 g/a enables detection of the smallest leaks

Fast - Leak detection with response time < 2 sec

One for all - Detects all common refrigerants

Convenient - Leak detection via flexible and robust gooseneck

Easy & reliable - Selectable display modes (numeric & bar graph) for clear leak detection

The testo 514 is an easy-to-use and reliable refrigerant leak detector designed for the detection of representative refrigerants and tested in accordance with DIN EN 14624 for AC/R systems. With a high sensitivity of 3 g/a, it detects even the smallest leaks and complies with the requirements of the EU F-Gas Regulation. The device is ready for use immediately after switching on, without having to select a refrigerant characteristic. Thanks to the replaceable refrigerant sensor, downtime is virtually eliminated.

Technical Specifications
