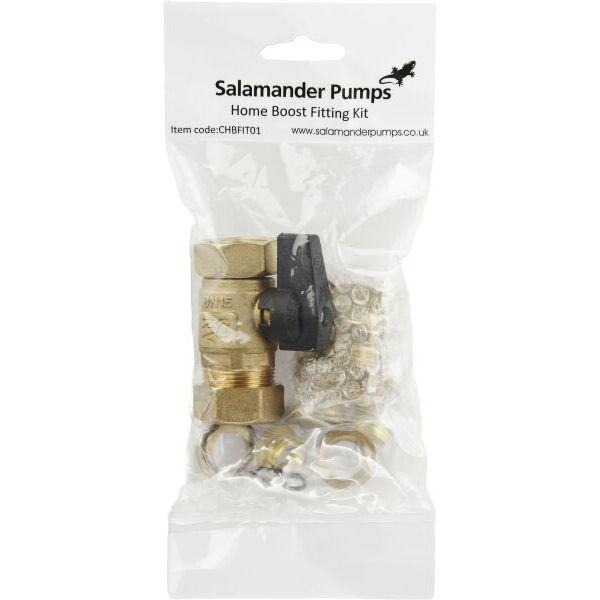

Salamander Home Boost Fitting Kit

HomeBoost is an intelligent inline mains booster pump. It will boost the incoming mains water supply to the whole house to 12 litres per minute.

It recognises when pressure and flow are low and quietly boosts the performance of the incoming mains water, either directly or indirectly via the combination boiler, up to 12 litres per minute.

Our range of inline pumps should be installed directly onto the incoming mains using 3/4" BSP to 15mm or 22mm fittings either after the stop tap or before the boiler appliance.

• 3 year warranty
• Boosts mains water flow up to 12 l/min
• Improved shower performance
• Quicker bath fill
• Stronger flowing taps
• Flow indicator lights
• WRAS Approved
• Fully compliant with water regulations
• Extremely quiet, only 46dBA*

		HomeBoost
General	Guarantee	3 Years
Features	Pump Type	MainsBooster
Performance	Litres per Min	12l
	Bar Rating	1.6 bar
	Noise Rating	46dBA
Motor	Type	Brushless
	Duty Rating	Continuously rated
Electrical	Flow Indicator Light	Yes
	Power Supply	230v
	Current (Full load)	1.8 Amps
	Power Consumption	Variable
	Fuse Rating	3 Amps
	Power Cable (pre-wired)	1.5 metres
Physical	Enclosure Protection (IP Rating)	IPX4
	Length	193mm
	Width	110mm
	Height	175mm
	Weight	3.1kg

Technical Specifications

Manufacturer Part Number

CHBFIT01
