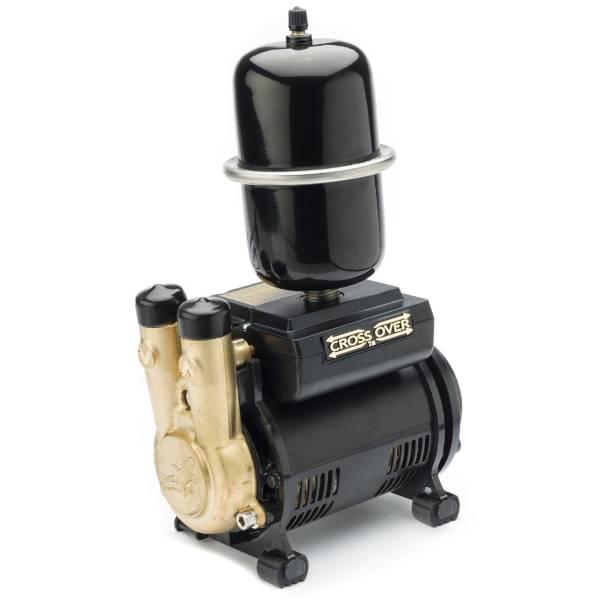

Salamander 2.0 Bar SGL Univ

Part Number : COR.C004373

£253.20 Ex VAT

£303.84 Inc VAT

2 available for delivery.

£253.20 Ex VAT

£303.84 Inc VAT

2 available for delivery.
Please enter your delivery postcode

Simply call us on the number below...

The CT Force 20 SU has a robust brass end and a brass impeller, designed to meet the increased demands for water supply within the home.
This single ended pump will quietly and efficiently boost the hot or cold water supplies to the shower or individual taps and outlets in a negative head gravity fed installation.
  • Brass end and brass impeller.
    • 5-year warranty.
    • Very quiet in operation.
    • Patented technology.
    • AV couplers included.

The CT Force 20 SU pump is a 2.0 bar single regenerative shower pump suitable for boosting water performance in a gravity fed negative or positive head system. It can be used when the cold water is mains fed.

AV couplers with isolating valves are included.

Our entire range of CT Force pumps is protected by the following patent: Integrated volute - GB2465392B

Guarantee

5 years

Pump Type

Regenerative

Noise

49dBA*

Mechanical Seal

Nitrile/Carbon/Ceramic

Anti-vibration feet

Yes

Inlet isolators

Yes

Flexible Hoses

2

Pressure @ closed head

2.0 bar

Pressure @ 8lpm

1.8 bar

Pressure @ 16lpm

1.5 bar

Maximum water Temperature

65°C

Pressure vessel air pre-charge

28psi

Pump connections

3/4" BSP

Hose connections (UK model)

3/4" female x 22mm push-fit x 280 mm long, isolating valves on all hoses

Hose connections (ROI model)

3/4" female x 21mm push-fit x 280 mm long, isolating valves on all hoses

Motor type

A.C Induction

Motor duty rating

Continuously rated

Power supply

230V

Current (full load)

1.25 amps

Power consumption

304 watts

Fuse rating

3 Amps

Power cable (pre-wired)

1.5 metres

Enclosure protection (IP rating)

IPX2

Length

187.8mm

Width

125mm

Height (Excluding hoses)

315mm

Weight (Excluding hoses)

5.00 kg

Technical Specifications

Manufacturer Part Number CTFORCE 20SU
