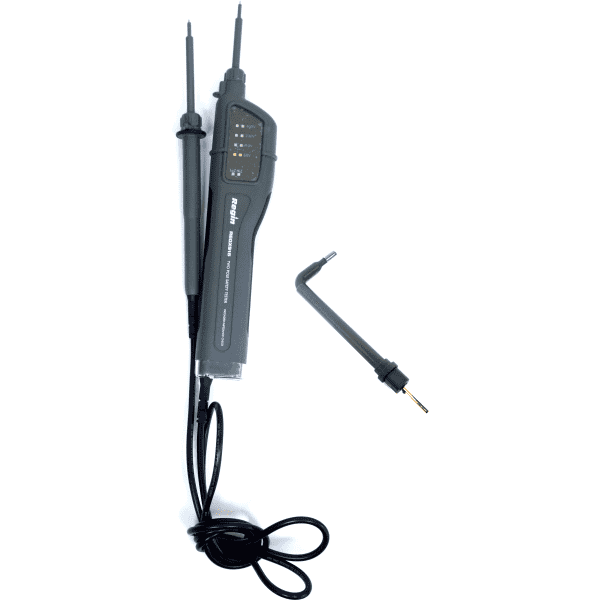

Regin Two Pole Tester (HI/LOz)

The Regin REGXS15 is the culmination of over two years’ worth of development and field trials within several of the UK’s leading SMART Metering and Utility companies.

The REGEX15 creates much safer working practices than are currently available with any other known 2 pole testers. It can carry out a physical impedance check to indicate hi or low impedance on the circuit being worked upon, therefore indicating that the item under test has no dead short connections. The Red LoZ LED illuminates to indicate an impedance of less than 100 ohms has been detected. The operative would immediately know not to proceed to conduct further investigation. The Green HiZ LED illuminates to indicate a high impedance of more than 100 ohms ensuring that the engineer is safe to re-energise the meter.

Ghost or induced voltage can be an additional problem. Most 2 pole testers that allow you to test for ghost voltages do this by varying the load on the circuit by depressing two buttons, one on the mains tester and the other on the passive probe. The REGEX15 does this automatically and has no buttons to depress.

• Clear and unique Circuit impedance indication for added safety
• Front dual; high visibility, colour coded LED display of voltage and hi/lo impedance.
• Secondary base display for safe arms-length indication/
• Interchangeable straight and right-angled GS38 compliant test prods
• No batteries and no buttons for simple, reliable operation.

Technical Specifications

Manufacturer Part Number	REGXS15
EAN Barcode	5060026573655
