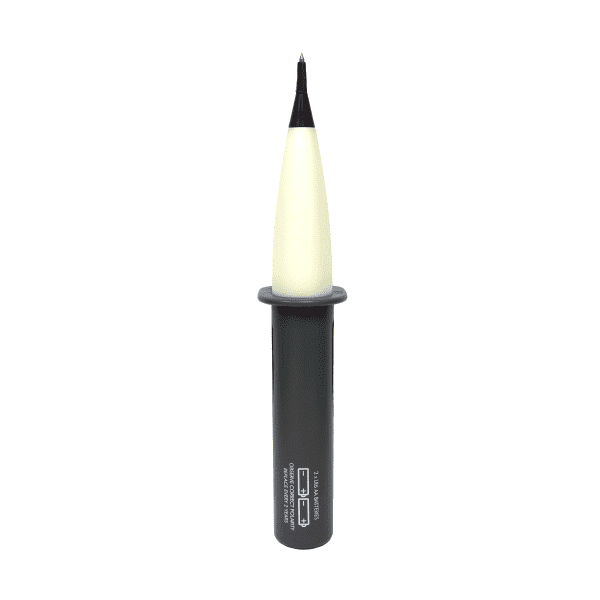

Regin Contact Hazardous Voltage Detector

The Regin REGXS19 is an all new dual-function hazardous Voltage and Live-phase finder built to detect voltages greater than 50V and to ensure safety for it’s operative. The unit uses Direct Contact by way of Capacitive Coupling to identify any Live Phase; a more certain method than Non-Contact indication, making the REGXS19 a safe addition to any Engineers Toolbox.

The UK designed REGXS19 is a dual function hazardous voltage and live phase finder which will detect if voltages greater than 50VAC are present in order to protect operatives from dangerous live circuits, direct contact or leakage situations at electrical cabinets, street lighting columns and wooden, concrete and metal poles that carry live overhead supplies.

As the REGXS19 uses direct contact for measuring (using the safest method known – capacitive coupling), the identification of the live phase is more certain than using Non-Contact Voltage Indicators or similar devices.

The REGXS19 is extremely safe to use as there is no need to operate touch pads or any other direct contact method to operate the unit correctly.

• Voltage Measurement range 50 – 600VAC
• Safe Live Phase Detection
• Flashing Red front section plus audible warning indicates greater than 50VAC is present.
• Slow flashing blue LED with single beep monitors REGXS19 electronics are working correctly.
• REGXS19 is fully functioning even if wearing full PPE
• Robust construction with IP54 water and dust ingress rating
• Probe tip conforms to HSE Recommendation GS 38

Technical Specifications

Manufacturer Part Number	REGXS19
EAN Barcode	5060026573655
