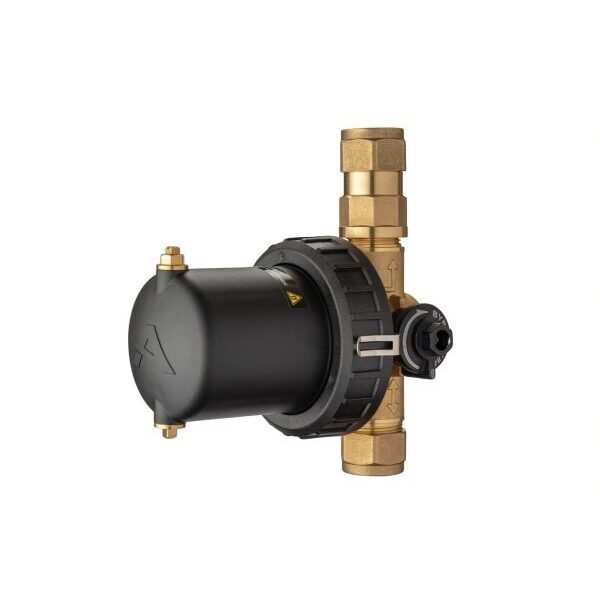

Adey MagnaClean Atom 22mm Filter c/w MC1+/MC3+ Rapide Pack

Part Number : C004367

Was £128.53 Ex VAT

Now £94.26 Ex VAT

£113.11 Inc VAT

Out of stock. Available to order. Contact us for lead time

£94.26 Ex VAT

£113.11 Inc VAT

Out of stock. Available to order. Contact us for lead time
Please enter your delivery postcode

Simply call us on the number below...

MagnaClean Atom® protects the central heating system against the damaging effects of black iron oxide sludge. The super-compact design provides an opportunity to fit a filter into previously inaccessible spaces

Homeowner Benefits

  • 6% annual saving on heating bills
  • Immediate ongoing system protection
  • Extended system life
  • Reduced carbon emissions
  • 2-year warranty when registered within 30 days of installation

Technical Specifications

Canister

  • Material: Glass reinforced polymer
  • Fluid capacity: 230ml
  • Inlet diameter: 22mm compression
  • Outlet diameter: 22mm compression
  • Thread: Pressure thread
  • Flow configuration: One direction only
  • Valve to canister seal: EPDM
  • Magnet length: 82.5mm
  • Magnet diameter: 20mm

Bleed valve

  • Body material: Brass
  • Screw: Brass
  • Thread interface: M6

Drain port

  • Drain plug material: Brass
  • Drain plug thread: M8 (non-standard)
  • Seals: EPDM

Servicing Clearance

  • Air vent: 20mm
  • Drain plug: 30mm

Packaging and handling

  • Packaged in single units with all components included

Storage

  • No special storage requirements necessary

Installer Benefits

  • Only 115mm needed to install so can fit into even the tightest of spaces
  • Fits vertical and horizontal pipework for additional flexibility
  • The canister can be placed in 4 positions, always ensuring the air vent is at the top, "A" on front of canister will be upright
  • Filter can be switched to bypass so no need to turn off the heating system when servicing
  • 2-way valve has a white indicator to show what mode the filter is in
  • Supplied fully assembled and ready for installation saving time on-site
  • Slip socket design to allow installation to be completed in just two minutes
  • Quick and easy chemical dosing using ADEY Rapide®
  • Recommended direction of flow is shown on the rear of the brass body

Technical Specifications

Manufacturer Part Number FL1-03-05120
EAN Barcode 5060106372758
