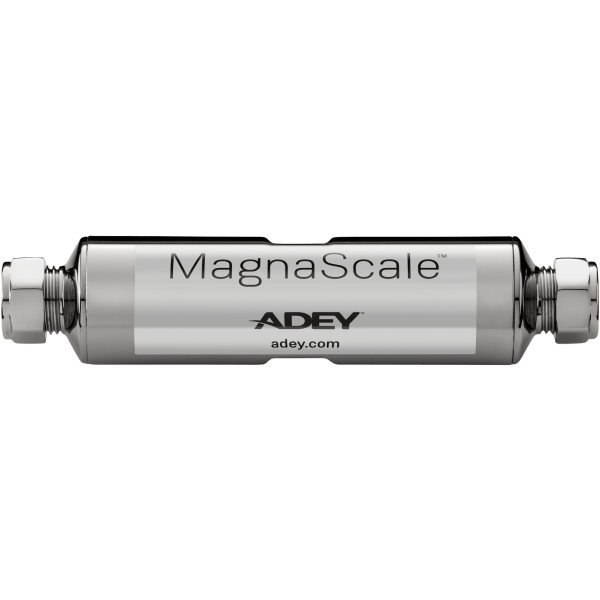

Adey Magna Scale Compression 15mm

Part Number : CORGID.3424434

£33.09 Ex VAT

£39.71 Inc VAT

69 available for delivery.

£33.09 Ex VAT

£39.71 Inc VAT

69 available for delivery.
Please enter your delivery postcode

Need help or advice?
Simply call us on the number below...

The harder the water, the more minerals it contains and the more likely limescale is to build up. Designed for properties where water hardness is above 200ppm, MagnaScale protects individual appliances from damage, so that hard water isn’t a problem.

Homeowner Benefits

  • Maintenance free
  • Immediate limescale protection for individual appliances
  • No running costs – no mains power supply required

Technical Specifications

Technical Specification

  • Connection: 15mm compression
  • Material: Copper tube to BS EN 12449
  • Maximum working temperature: 65°C
  • Minimum working temperature: 1°C
  • Maximum working pressure: 12 bar at 20°C 6 bar at 65°C
  • Compression body length: 145mm
  • Diameter: 35mm
  • MagnaScale 15mm Compression ΔP at 25.0 l/min = 120 mbar

Installer Benefits

  • Protect individual appliances where limescale would otherwise build up
  • Simple to install – no mains power supply required
  • Part L Building Regulation compliant

Technical Specifications

Manufacturer Part Number SR1-03-05230
